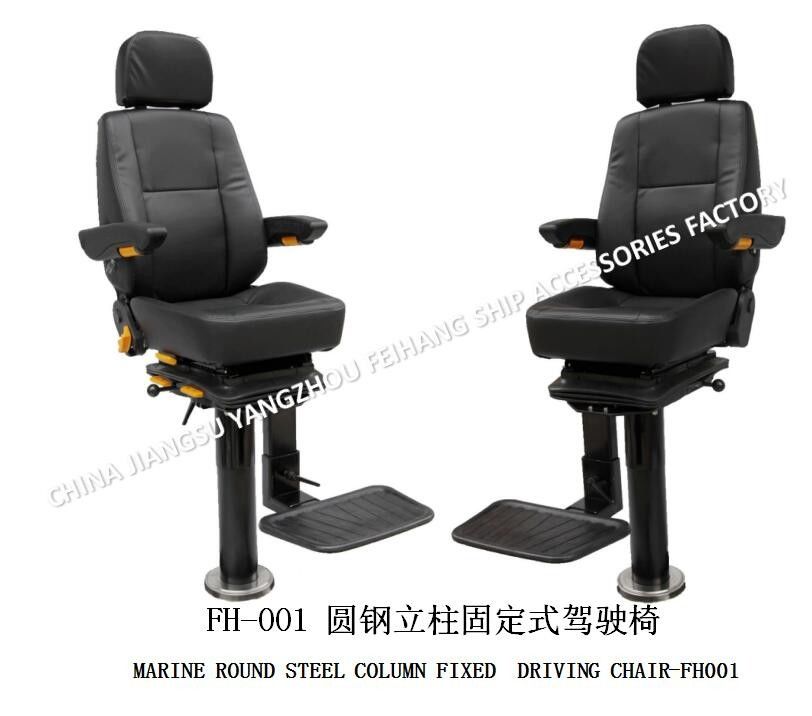

FH-001 Round steel column fixed driving seat
MARINE ROUND STEEL COLUMN FIXED DRIVING CHAIR-FH001
About Marine FH001 Fixed Driving Chair/Round Steel Column Fixed Marine Driving Chair Product Overview:
Marine FH001 fixed driving seat/round steel column fixed type marine driving seat is a seat that is convenient for the crew chief engineer to drive.
About Marine FH001 Fixed Driving Chair/Round Steel Column Fixed Marine Driving Chair Technical Parameters:
|
| Design and manufacturing testing standards |
cb |
| Seat material |
PU imitation leather/leather |
| Column material |
Round bar |
| Guide rail and positioning base material |
High-strength aluminum alloy |
| Foot pedal |
Synthesis of steel plate core and environmental protection rubber products; |
Warship driving chair-cab sliding type driving chair Function description:
|
|
1. Ergonomic design;
2. The seat can move integrally on the high-intensity double slide rail;
3. Adjustable backrest and headrest;
4. Seat height can be adjusted by angle;
5. The seat can move back and forth;
6. Foldable/adjustable angle type comfortable seat armrest;
7. The seat can rotate 360 degrees, multi-point positioning;
8. The height of the foot pedal is adjustable/foldable;
9. The vertical column can be lifted up and down vertically;
|
About marine FH001 fixed driving seat/round steel column fixed type marine driving seat:
|

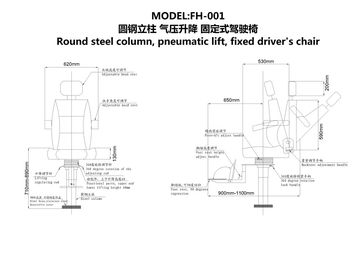

| 1. The upper part of the seat of the marine FH001 fixed driving chair/round steel column fixed marine driving chair can be moved forward and backward by 120mm, the height is adjusted by 60mm, and the inclination angle of the seat surface is ±12°; |
| 2. Seat FH001 fixed driver's seat/round steel column fixed ship's driver's seat backrest can be adjusted at an angle of 85°-135°, the headrest is adjusted up and down by 50mm, and the armrest is positioned at multiple points; |
| 3. Seat pedal hydraulic lifting adjustment range of FH001 fixed driving chair/round steel column fixed marine driving chair is 0-150mm; |
| 4. The seat of the marine FH001 fixed driving chair/round steel column fixed type marine driving chair can be rotated 360°, and the multi-point positioning control; |
| 5. The seat pedal of the marine FH001 fixed driving chair/round steel column fixed marine driving chair can be returned 90°, and the up and down position adjustment range is 0-50mm; |
| 6. The seat of the marine FH001 fixed driving chair/round steel column fixed marine driving chair can withstand the torque of 150FT.LB or more, reaching the AD level standard; |
About marine FH001 fixed driving chair / round steel column fixed type marine driving chair:
