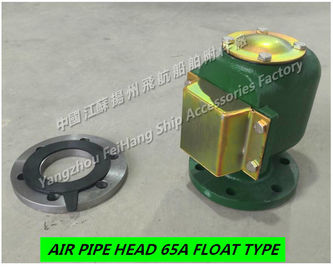

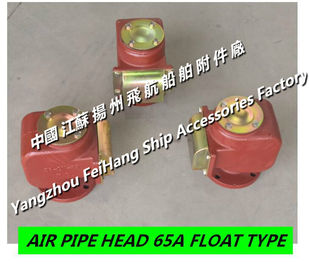

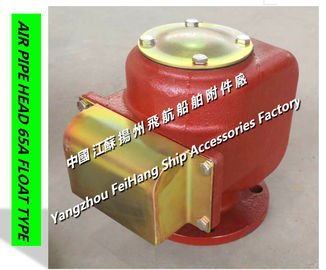

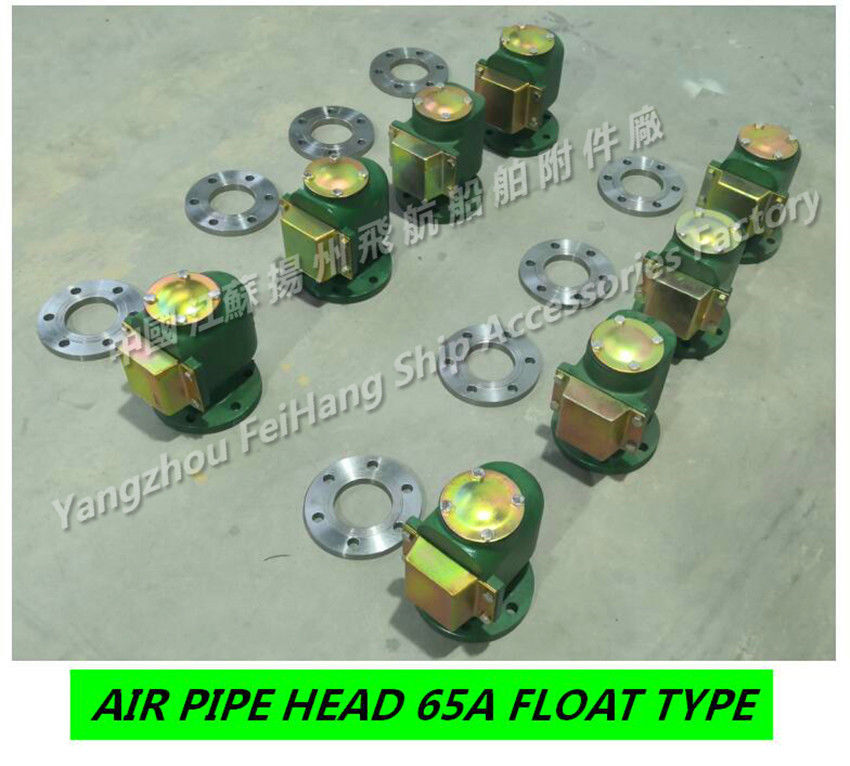

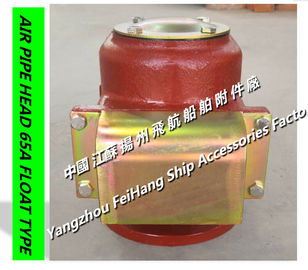

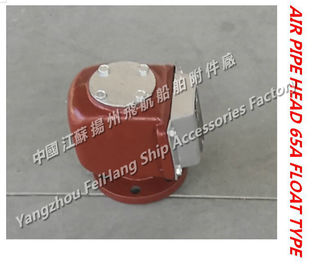

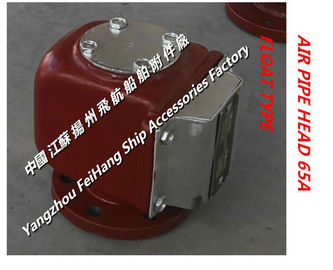

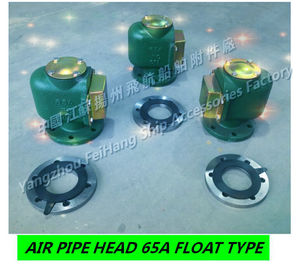

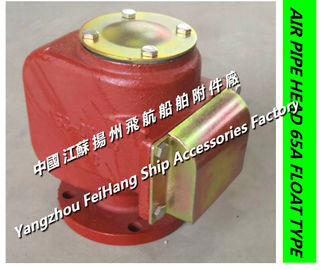

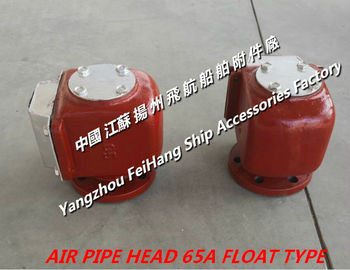

Float type air pipe head - float type breathable cap - float type breathable cap MODEL:65A
 |
|
Nominal diameter: 65mm Nominal pressure: 0.3Mpa
Body material - cast iron inner part - stainless steel float
Connection method - flange
|
Here, our company made a brief introduction to the DN65 air tube head GB and Japanese standard:
GB CB/T3594-1994 buoy type oil tank air head:
"Marine air pipe head / marine ventilation cap / marine air cap Air pipe head"
|
Marine fuel tank air pipe head DN65 CB/T3594-94
Precipitation cabinet marine buoyant air pipe head and oil tank marine air pipe head DS65 CB/T3594-94
Boat tail tip venting cap E65/cabin marine air connector ES65 CB/T3594
ES65 engine cabin floating buoyancy cap, ballast tank buoyancy air connector
Ballast tank breathable cap, marine freshwater tank air pipe head / fresh water tank marine breathable cap
|
JIS-KS91A-121 Japanese standard 5K/10K oil tank breathable cap:
|
Marine fuel tank breathable cap 5K-65A JIS-KS91A-121
Precipitation cabinet marine buoyant breathable cap 10K-65A
Marine tail tip cabin breathable cap 5K-65A
JIS-F3012-122 marine buoyant breathable cap, ballast tank breathable cap
Ballast tank breathable cap 5K-65A JIS-F3012-122
5K-65A JIS-KS91A-121 Marine fresh water tank air pipe head / fresh water tank marine ventilation cap
|

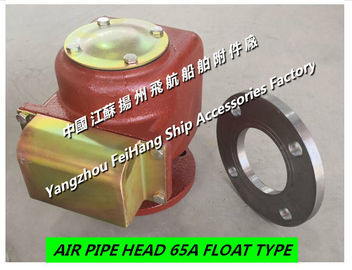

DN65 fuel tank air pipe head / fuel tank breathable cap, its flange size can be selected as follows:
Flange size 1: outer diameter 155mm center distance (eye distance) 123mm 6 holes
Flange size 2: outer diameter 160mm center distance (eye distance) 130mm 4 holes
JIS-5K: outer diameter 155mm center distance (eye distance) 130mm 4 holes
JIS-10K: outer diameter 175mm center distance (eye distance) 140mm 4 holes
DIN-16K: OD 185mm Center distance (eye distance) 145mm 4 holes
AISI-150LB: outer diameter 178mm center distance (eye distance) 139mm 4 holes
According to the customer's request, the marine oil tank air pipe head / marine oil tank breathable cap 65A, its custom material can be selected as follows:
HT200-Flanged cast iron air pipe head, flanged cast iron breathable cap 65A
QT400-15 ductile iron air pipe head, ductile iron ventilation cap 65A
SUS304 stainless steel vent cap 65A, stainless steel air tube head 65A, stainless steel air cap 65A
