Suction strainer of sewage well suction strainer
An overview of the suction filter for marine suction filter-sewage Wells The suction strainer of the vessel is applicable to the suction device of the Ship's oil tank, water tank, ballast tank, cargo tank, etc.
Suction Strainer Product terminology and model meaning of suction strainer for marine sewage wells:
A80 cb*623-80: Model A type-with clip ring round, the nominal diameter of 80mm, the material is carbon steel q235-a of the steel drainage wells suction Screen.
a80s cb*623-80: Model A type-with clip ring round, the nominal diameter of 80mm, stainless steel stainless steel sewage wells suction Filter.
a80h cb*623-80: Model A type-with clip ring round, nominal diameter of 80mm, brass copper sewage well suction filter.
Technical parameters of suction filter for marine suction screen-sewage Well:
|
| Implementation criteria |
CB*623-1980 |
| Model |
TYPE:A/B/C/D |
| Material |
20# 304 316 H62 |
| Nominal path |
DN25-DN250 |
| Connection form |
Casing Connection |
| Eyelets diameter |
10mm |
| Surface Treatment |
Carbon steel: Hot-dip Galvanized Stainless steel: pickling treatment or anti-corrosion paint brass-polishing treatment |
| |
|
About suction strainer Marine circular suction screen selection mark: Copper suction strainer for ships suction strainer

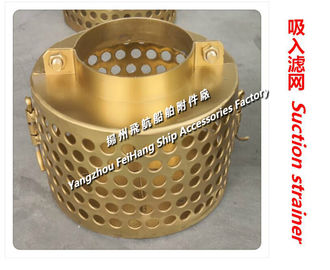

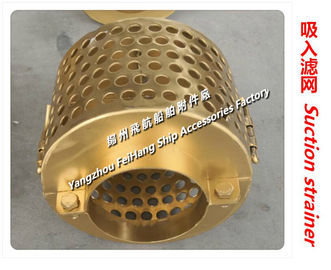

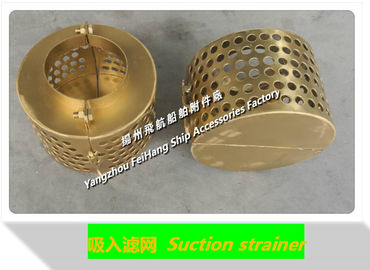

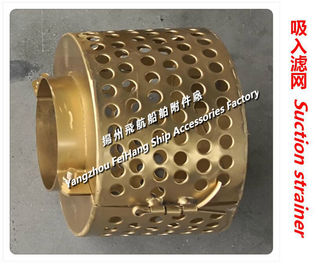

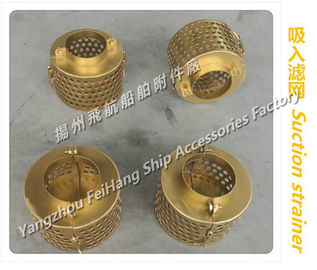

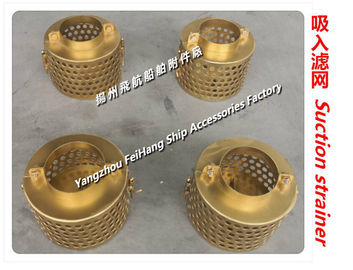

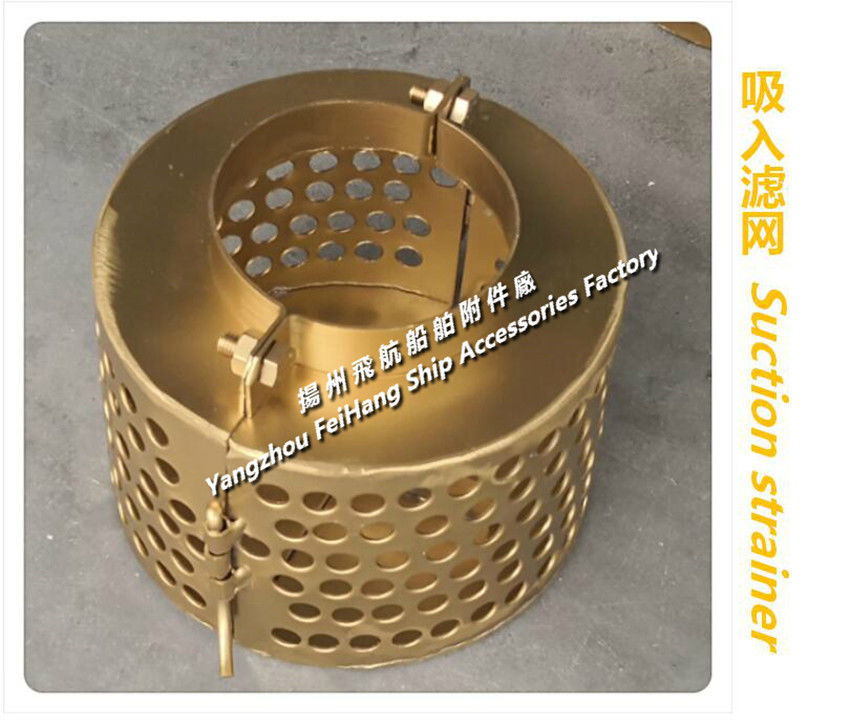

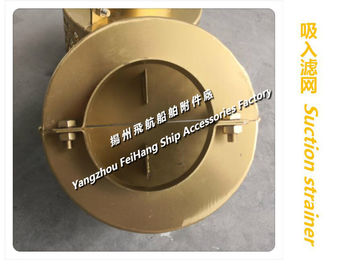

Copper suction strainer for ships suction strainer
| Model:A65H CB*623-80 |
Select Model A type-with clip ring round, the nominal diameter of 65mm, the material is a copper hot-dip galvanized sewage well suction strainer. |
| Model:A80H CB*623-80 |
Select Model A type-with clip ring round, the nominal diameter of 80mm, the material is copper sewage well suction filter. |
| Model:A100H CB*623-80 |
Select Model A type-with clip ring round, the nominal diameter of 100mm, the material is copper sewage well suction filter. |
Marine carbon steel galvanized suction screen suction strainer
| Model:A25G CB*623-80 |
Select Model A type-with clip ring round, the nominal diameter of 25mm, the material is carbon steel hot dip galvanized sewage well suction strainer. |
| Model:A50G CB*623-80 |
Select Model A type-with clip ring round, the nominal diameter of 50mm, the material is carbon steel hot dip galvanized sewage well suction strainer. |
| Model:A65G CB*623-80 |
Select Model A type-with clip ring round, the nominal diameter of 65mm, the material is carbon steel hot dip galvanized sewage well suction strainer. |
Suction strainer for marine stainless steel sewage well suction strainer
| Model:A32S CB*623-80 |
Select Model A type-with clip ring round, the nominal diameter of 32mm, the material is stainless steel drainage wells suction Screen. |
| Model:A40S CB*623-80 |
Select Model A type-with clip ring round, the nominal diameter of 40mm, the material is stainless steel drainage wells suction Screen. |
| Model:A80S CB*623-80 |
Select Model A type-with clip ring round, the nominal diameter of 80mm, the material is stainless steel drainage wells suction Screen. |
